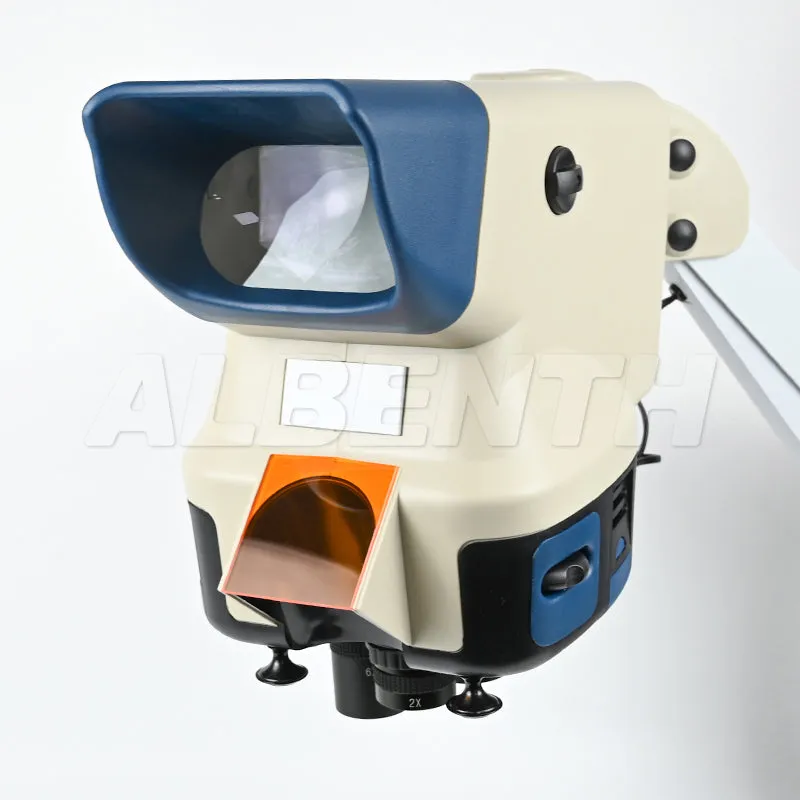

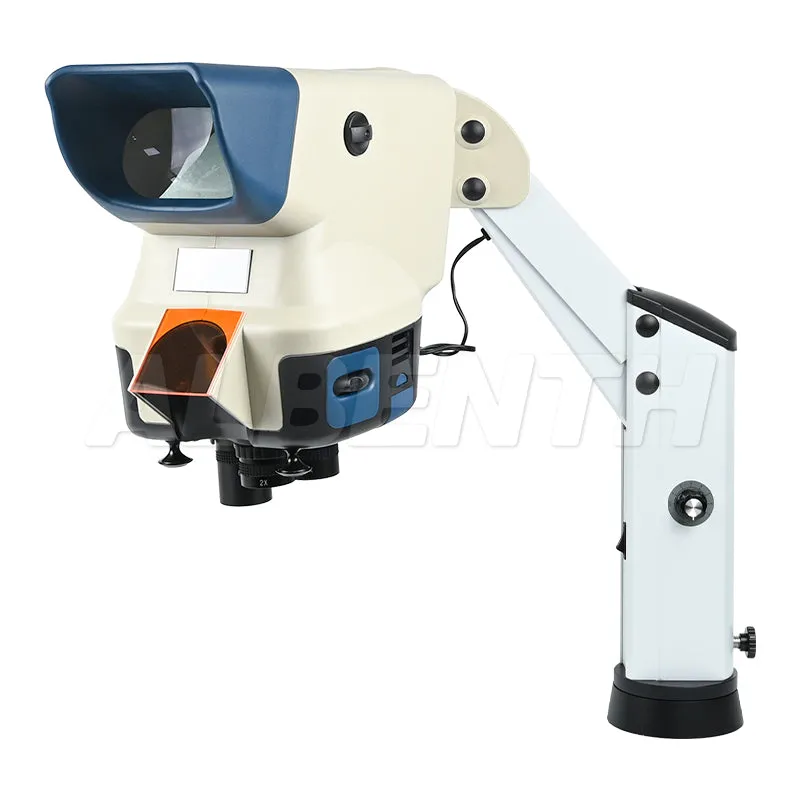

Eyepiece-less design
DSM-215 eyepiece-less technology projects a large high-quality 3D image directly to your eye, making it easier to see and more comfortable to view than a binocular stereo microscopes.
The clarity of the 3D image supports enhanced hand-eye coordination, making subject manipulation with tools more accurate, faster and more efficient.
You can even wear corrective or protective eyewear without loss in performance.

Dynamic View Optics (DVO)
The DSM-215 unique Dynamic View Optics enables a stereo view, which changes as you move your head. See the sides of a subject as well as the top to gain a greater level of information and understanding.

High performance digital imaging
Use DSM-215 integrated high quality microscope camera to share your image to a screen. Capture, review, analyze and share high-quality images, including annotations, in real-time, to improve reporting and communication.

Maximize working effectiveness by adding digital overlays to compare live images with targets, measures, or pre-set guides.

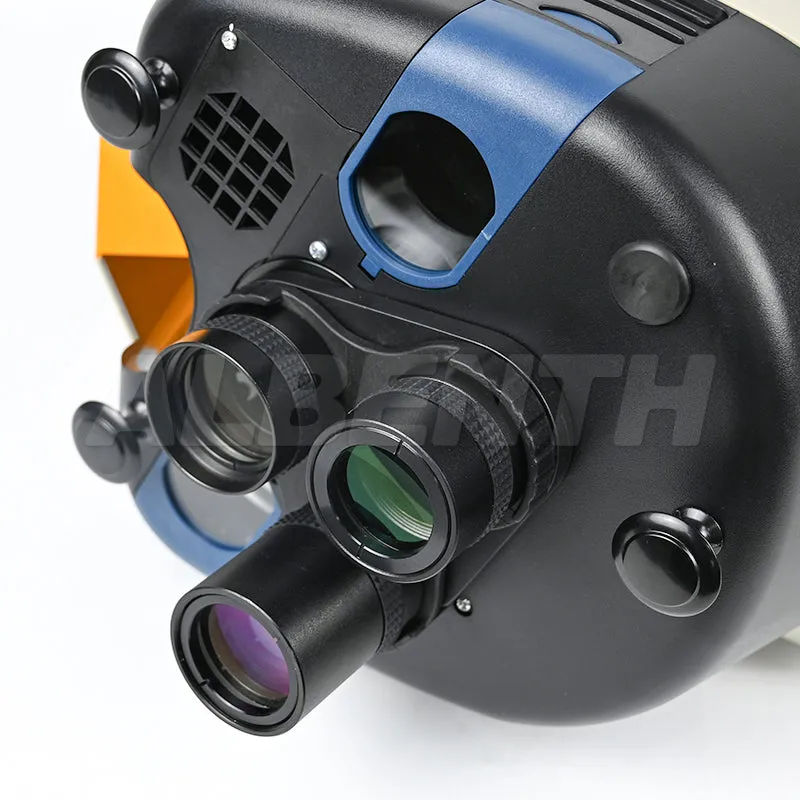

Range of optical lens
To ensure you get the highest image quality, each dedicated lens combines the finest optical quality glass and special coatings to give a high resolution, high contrast view. For the most demanding subjects there are is a range of Super Long Working Distance (SLWD) objective lenses.

THE stereo microscope for a range of applications
- Soldering, PCB inspection
- Great choice for the inspection of stents, catheters and other medical products
- Inspection and rework, such as the removal of flash and other injection molding defects
- Ideal for watch and jewelry making. Assembly and finishing of the smallest movements or the setting of stones is done with confidence and precision.
- High-concentration applications, which require long periods of intense focused working, such as sample preparation, dissection and manipulation can performed in comfort. Safety glasses can be worn, and DSM-215 stereo microscope can be used effectively in a laminar flow cabinet.
- Precision work such as tailoring dental prosthetics

Specification:

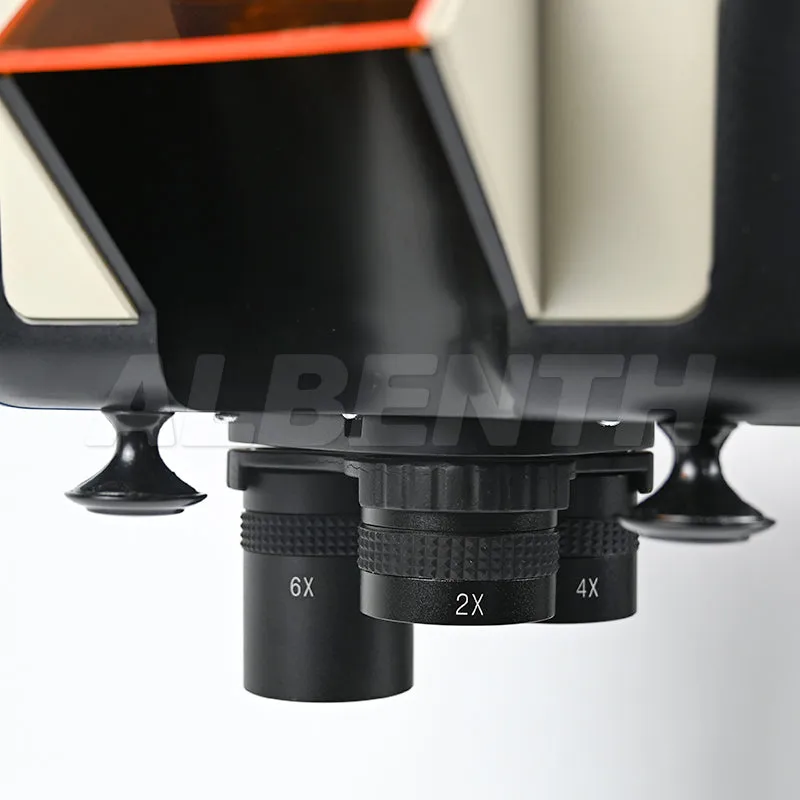

●Auxiliary Objective:
- Magnification: 2X; Working distance: 208mm; Max. Field of View: 68mm
- Magnification: 4X; Working distance: 98mm; Max. Field of View: 34mm
- Magnification: 6X; Working distance: 80mm; Max. Field of View: 22.7mm

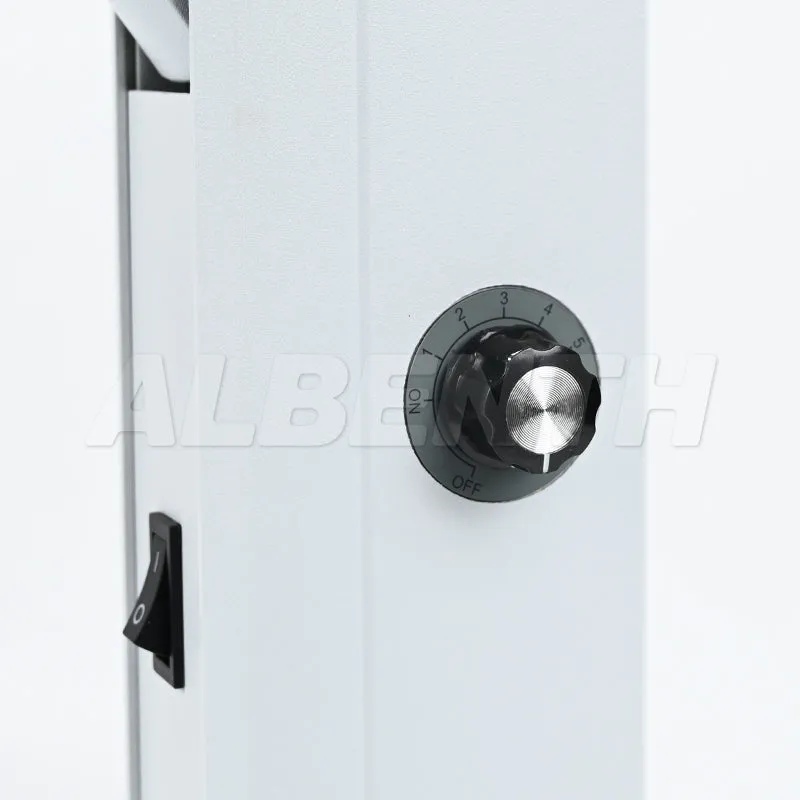

● Light Source: LED light, brightness adjustment

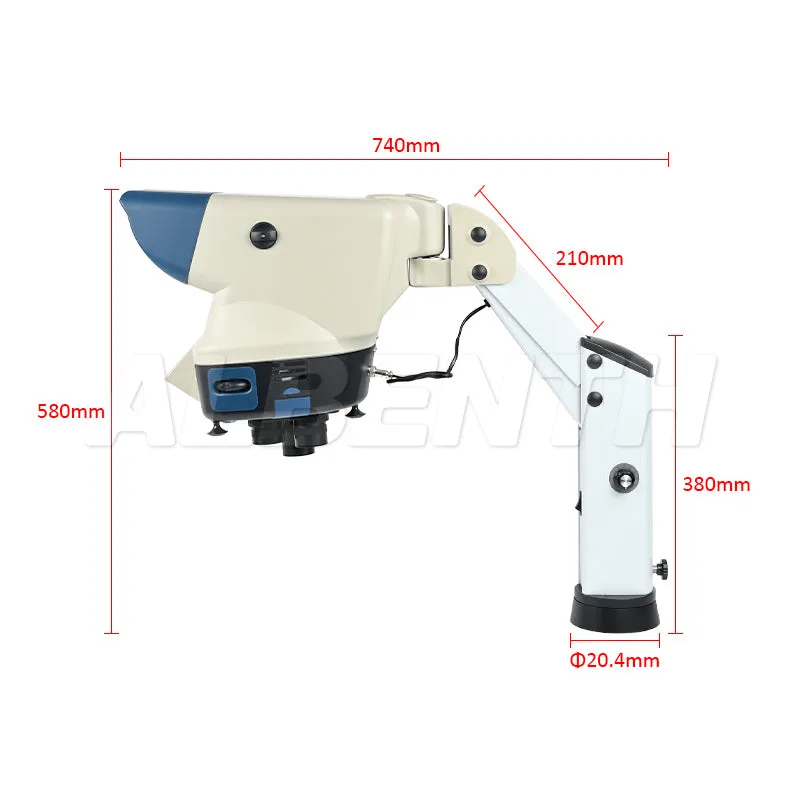

● Stand Height: 1800mm
● Strength Range: 850mm, easily observe large area objectives

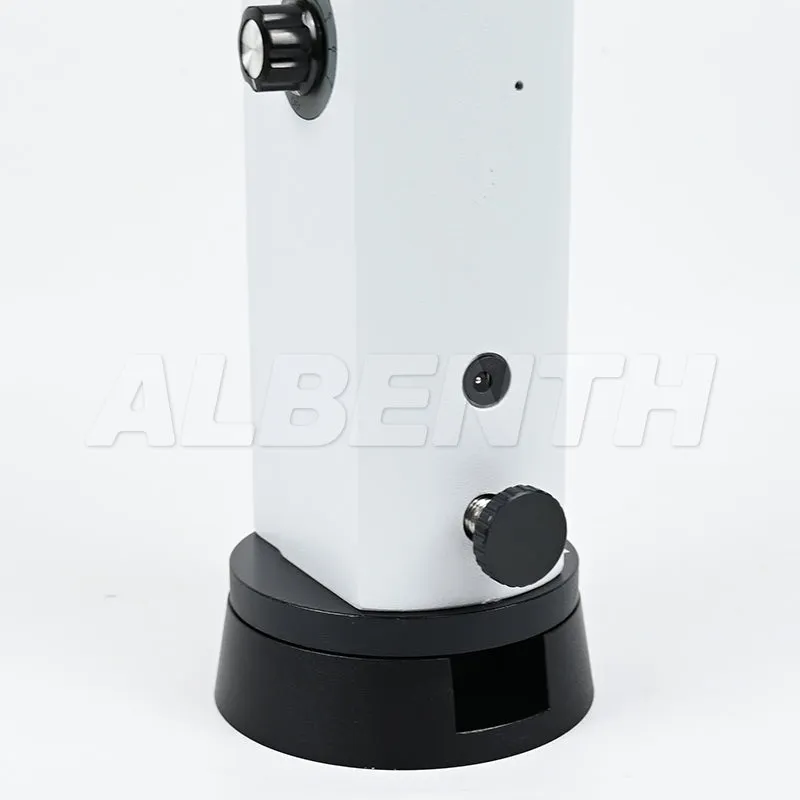

● Stable stand, free sliding, long vertical distance is 580mm with boast up and down
● Universal block with tension adjustment in bottom, it can free to move or fix so that to observe in a good position.
