-- Navitar high magnification zoom lenses are a number one choice around the world.
-- The modularity of our systems give you the magnification powers of traditional microscopes without the bulk or expense.
-- Equipment manufacturers looking for highly repeatable and automated precision optics can easily integrate, assemble and configure our lenses into new instruments achieving smaller footprints and lower prices than older equipment.
-- Motorization is available, providing maximum resolution and magnification.

-- Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in

modern equipment.

-- Adopt semi-apochromatic parallel optical imaging system, and use advanced multi-layer coating technology, excellently

correct the imaging on the edge of field of view, to get high-resolution and high contrast images, naturally restore the

true colors of observed objects.

-- Zoom ratio 1:6.5, zoom range 0.7X-4.5X, standard working distance 90mm, resolution ratio 63-180lp/mm, to meet the

requirement of machine vision conventional imaging.

-- There are a variety of auxiliary lens and CCD for option, make the system, maximum magnification up to 0.09X-18X,

working distance 37mm-356mm, object field of view 0.23mm-91mm.

-- Coaxial illumination system, adopt single high brightness 1W LED, color temperature 5500K, uniform lighting, suitable for

high reflectivity surface precision detection, and limited exterior lighting occasions. Various additional functions for option.

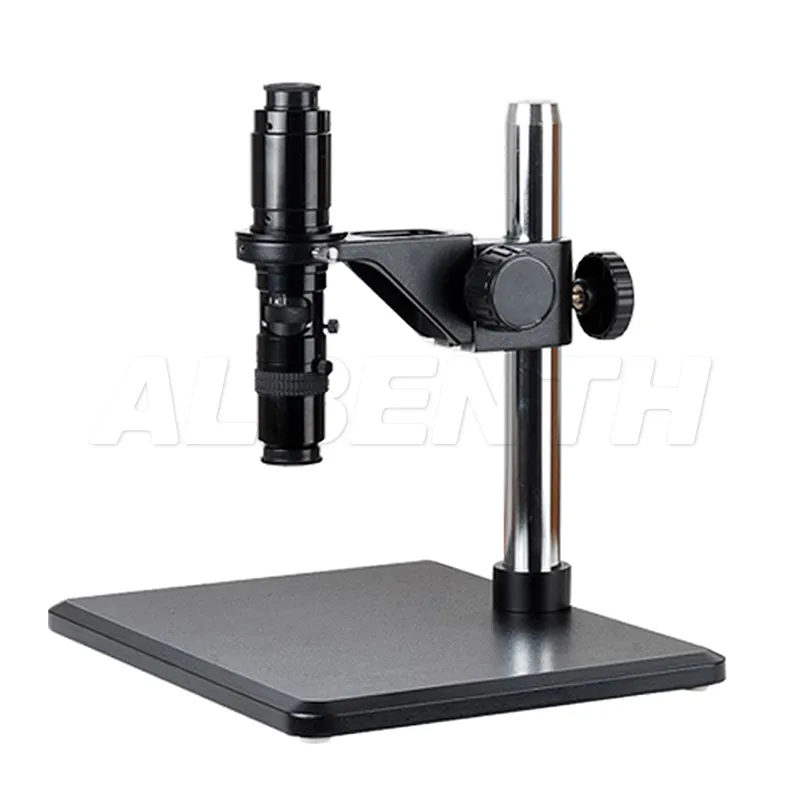

● Zoom lens: 0.7X-4.5X
● C-mount adapter: 0.67X C-mount adapter
● Base:
          - Column height：240mm
          - Diameter：φ32mm
          - Base：320x260x16mm
